Location: Home > Machinery > TRACTOR > TB704

TRACTOR

TB704

OXPLO Tractor, an Australian machinery brand, offers reliable compact tractors including its versatile 70hp tractor, designed for small-scale farming, property maintenance, and light agricultural work. The OXPLO tractor combines power, maneuverability, and durability for efficient daily operation.
TB704
4X4 62.5KW

Engine

70HP

Power

/

Load

3980×1760×2800mm

Dimensions

OXPLO Tractor, an Australian machinery brand, offers reliable compact tractors including its versatile 70hp tractor, designed for small-scale farming, property maintenance, and light agricultural work. The OXPLO tractor combines power, maneuverability, and durability for efficient daily operation.

PARAMETERS

TypeTB704
Power70HP
Drive Type4WD
Overall dimensionsLength/mm3980
Width/mm1760
Height/mm2800
Wheel trackFront wheel/mm1300/1400/1450/150
Rear Wheel/mm1300~1500
Wheelbase/mm2080
Minimum Ground Clearance/mm380
Minimum Operating Weight/kg2200
EngineTypeYN4EL089-33CR/YN38GB
Model4WD
Power62.5kw
Rated speed2200
Fuel TypeDiesel
TireFront Wheel

8.3-24

8.3-20

8.3-24

8.3-24

9.5-24

12.4-24

9.5-20

280/85R20

11.2-24

280/85R20

280/70R20

280/85R20

400/60-15.5

405/70R20

12.4-24

280/70R16

320/85R24

280/70R20

280/85R20

Rear Wheel

14.9-30

14.9-24

11-32

11-32

14.9-30

18.4-30

16.9-28

14.9-30

16.9-30

16.9-28

380/85R24

380/85R30

550/50-22.5

460/85R30

16.9-34

360/70R24

420/85R34

360/70R28

420/85R28

Clutch11" dual-stage
SteeringFull Hydraulic Steering
Transmission4x3×(1+1) 12+12
Hydraulic Suspension3-Point Suspension
PTO540/1000
6 × 35 ΦRectangular Spline


DETAILS

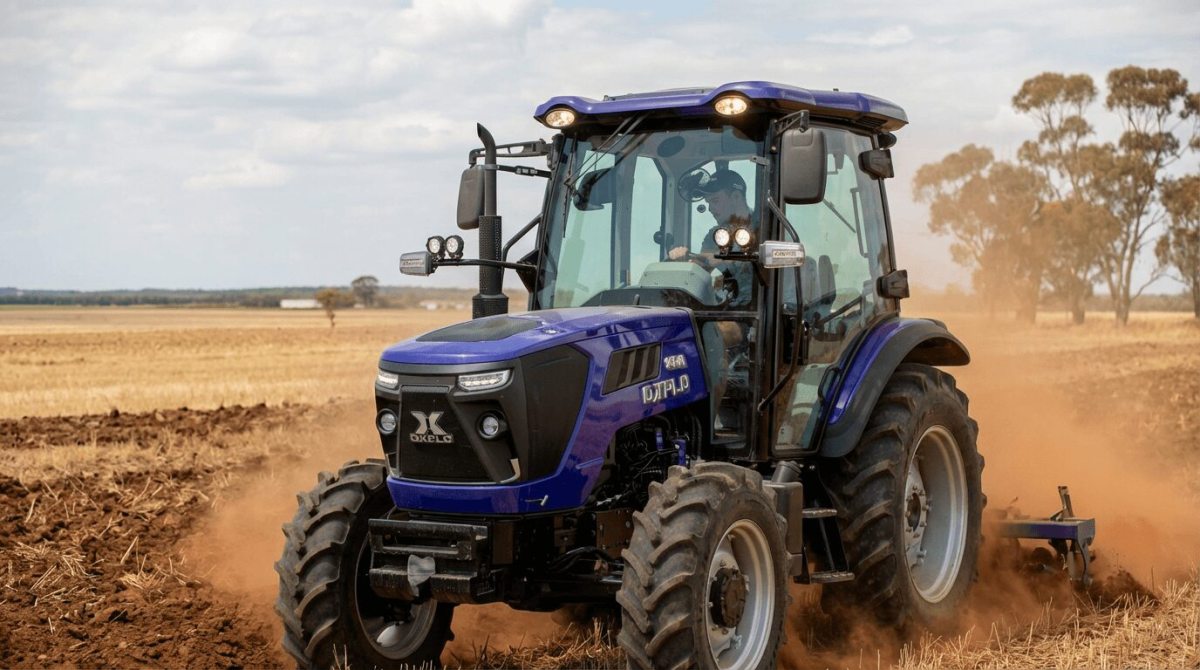

OXPLO 70hp tractor: Built for the Modern Farmer

We don't just build tractors; we build your most reliable partner in the field. Our 70hp tractor is designed for those who need more than just a machine—they need a workhorse that doesn't back down. By combining a world-class supply chain with rugged, precision engineering, OXPLO delivers the torque you need for deep plowing and the agility required for hauling. It's power you can feel, and reliability you can trust, season after season.


oxplo蓝色拖拉机澳大利亚农田作业1


Performance Without Compromise

Middle-range farming demands a tractor that is both powerful enough for heavy implements and agile enough for daily tasks. OXPLO 70HP solves the common industry pain points:

Zero Power Lag: No more struggling with heavy soil. Our high-torque engines ensure consistent pulling power.

Hydraulic Precision: Multi-group hydraulic outputs allow you to switch between mowers, loaders, and plows in minutes, not hours.

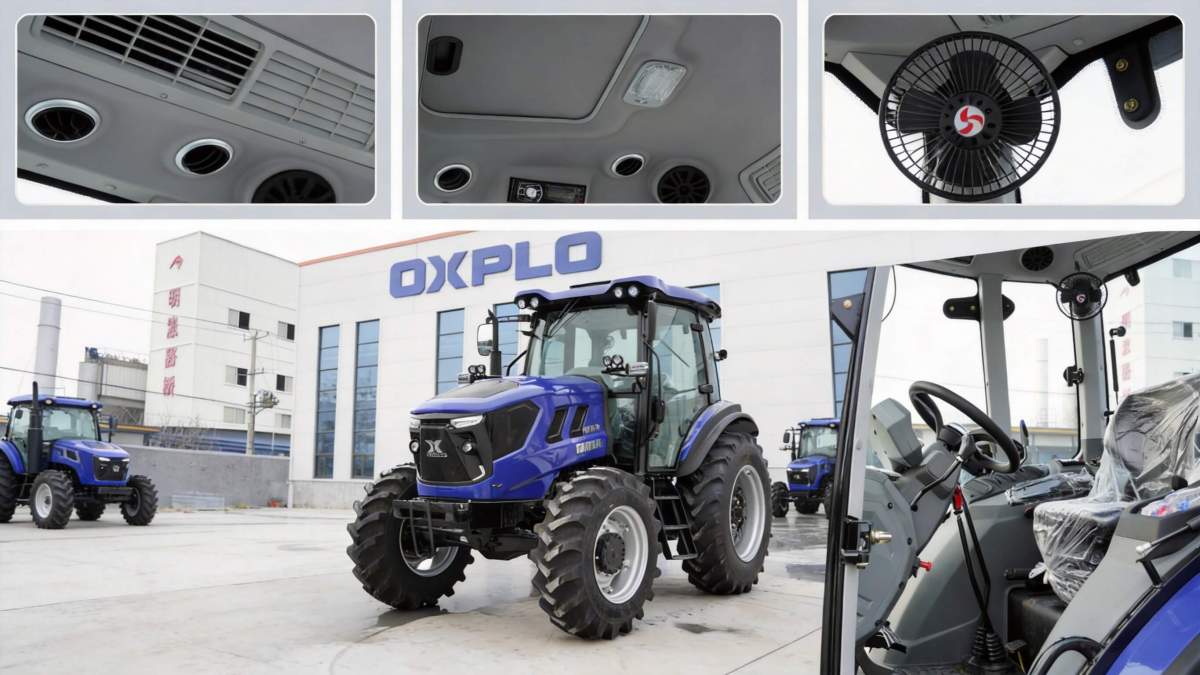

Operator Fatigue: We've replaced cramped, noisy cabins with an ergonomic "Command Center" to keep you productive from dawn till dusk.


拖拉机驾驶室展示图_3

Built with a "Global-Tier" Core

At OXPLO, we don't just "assemble" tractors—we curate high-performance systems. Our reliability isn't a marketing claim; it's a result of the high-spec components we've integrated into every machine:

Field-Proven Power: We've powered our lineup with engines from industry staples like Yuchai, Yunnei, and other top-tier manufacturers. These aren't off-the-shelf engines; they are chosen for their high torque-to-fuel ratio and massive service footprint. This means you get the grunt needed for heavy tillage without worrying about where to find a spare filter or a qualified technician.

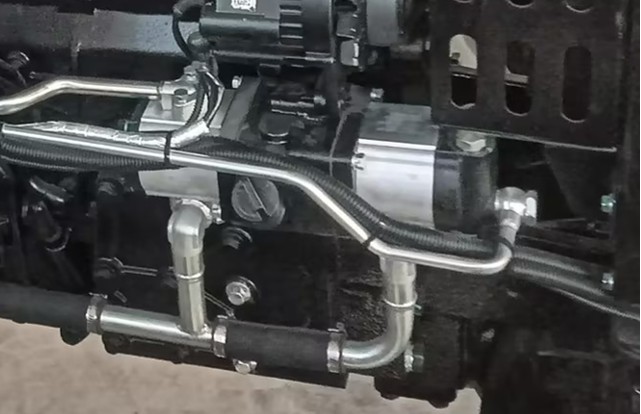

High-Pressure Precision Hydraulics: A tractor is only as good as its veins. We've equipped our systems with premium gear pumps and multi-layer, smooth-bore hoses. By focusing on the internal smoothness of the hydraulic lines, we've effectively eliminated the "silent killers" of hydraulic systems—friction-induced heat and internal debris. This results in snappier implement response and significantly fewer leak-related downtimes.

Operator-First Safety: We believe a safe driver is a productive one. Our cabins are built around a reinforced structural skeleton and wrapped in panoramic tempered glass. It's not just about meeting international safety codes; it's about giving the operator a clear, 360-degree view of the field while ensuring they are protected by a true roll-over-resistant frame.


TRACTOR
TB704

FAQ

Q: Is this tractor EPA/Euro V compliant?

A: Yes, we offer models specifically engineered to meet EPA Tier 4 Final and Euro Stage V emissions standards. Our goal is to ensure that farmers in regulated markets can enjoy high-performance machinery that fully complies with local environmental requirements without sacrificing engine torque or fuel efficiency.


Q: Does the machine come with a CE certificate for the European market?

A: Absolutely. Every tractor destined for the European market is fully CE certified. We ensure that our designs meet all essential health, safety, and environmental protection standards required by the EU, so you can import and operate your machinery with total peace of mind.


Q: Is the cabin ROPS/FOPS certified?

A: Absolutely. Safety is non-negotiable at OXPLO. Our cabins are engineered and independently tested to meet international ROPS (Roll-Over Protective Structure) and FOPS (Falling Object Protective Structure) standards. We use reinforced high-tensile steel frames designed to maintain a "survival zone" for the operator in the event of an overturn or accidental impact from above. Each certified unit comes with the necessary compliance plates for your peace of mind.
